Beatifully designed folding bikes from Vello
Superlight Titanium Frameset
Automatic gear shifting
Belt drive
Optional lower or higher gear ratios depending on use
KERS energy recuperation
Made in Austria
Available in various drivetrain versions and with or without electric assistance
Ask for details of options available on this range
VELLO BIKE+ AUTOMATIC
THE FIRST SELF-CHARGING ELECTRIC FOLDING BIKE
The VELLO Bike+ AUTOMATIC is your ideal city companion! Whether it's commuting to work, or an afternoon ride to the countryside, thanks to the innovative motor and space-saving folding technique, the portable bicycle by VELLO can be seamlessly integrated into your everyday life.
Thanks to the intelligent motor control, the VELLO Bike+ AUTOMATIC does not need a gear shift at speeds from 0-25km/h. Even slopes up to 8% can be handled without problems.
As a pedelec, the motor decouples at 25km/h: In this case, if you would like to go faster at comfortable cadence, we offer a 2-gear-transmission to ride mechanically over 25km/h (Schlumpf Speed Drive) or to be able to ride up steep hills with ease (Schlumpf Mountain Drive).
The Schlumpf drive is an ultra-flat planetary transmission mounted on the bottom bracket like a chainwheel with a transmission ratio of 1:1,65 for the Schlumpf Speed Drive or with a transmission ratio of 2,5:1 for the Schlumpf Mountain Drive.

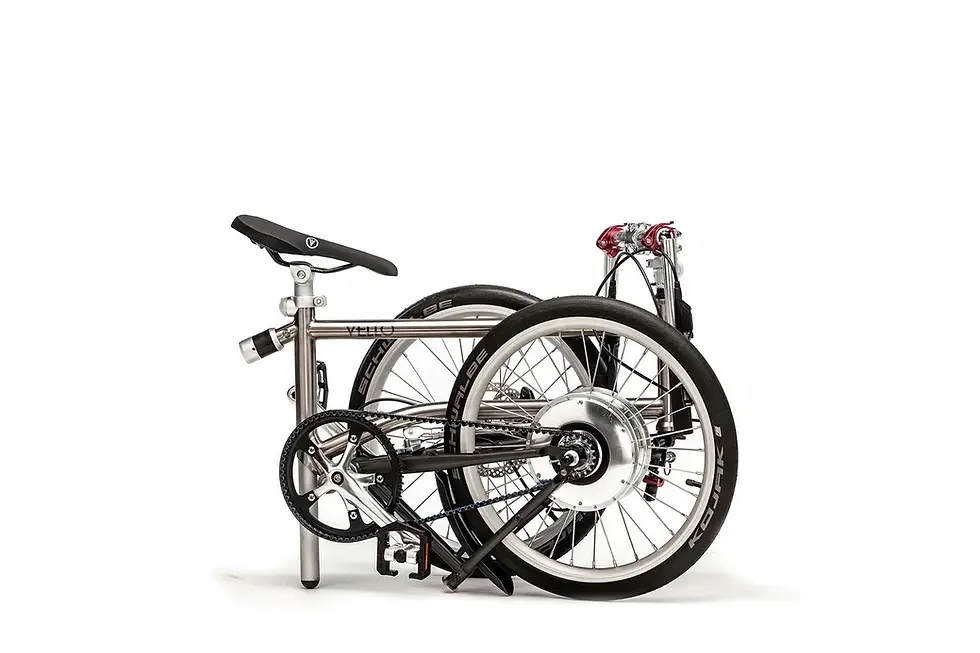

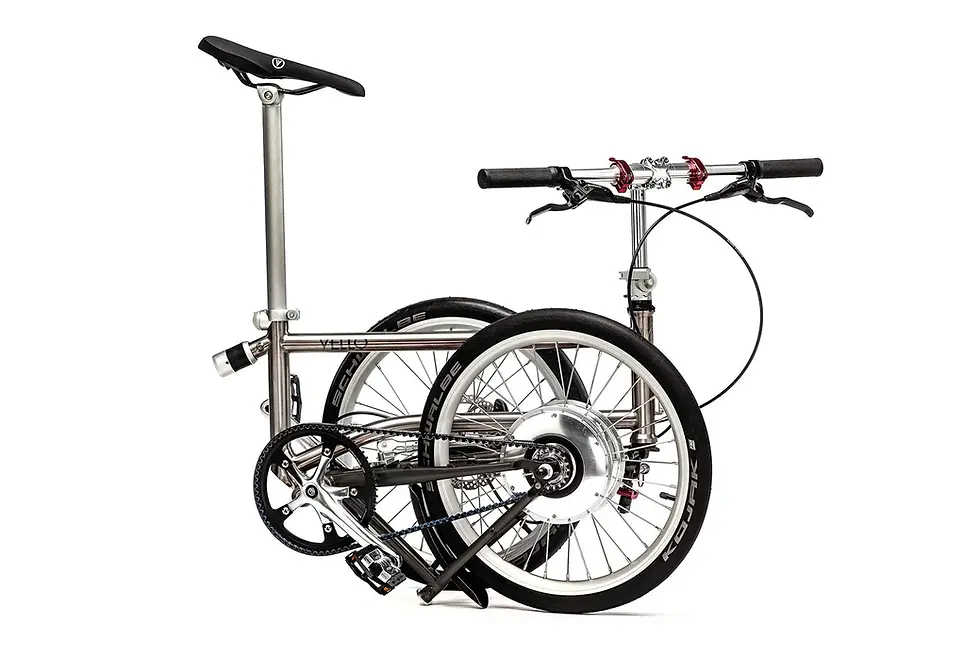

VELLO BIKE + AUTO TITANIUM
TECHNICAL DATA & FEATURES
- Frame: Multisize, unisex, chromoly steel/ shock absorbent with elastomer-magnet folding
- Color: Anthracite
- Handlebar, grips: Folding handlebars (VELLO BIKE design) with ergonomic grips
- Saddle: Selle Royal, foam matrix
- Seat post: Satori alloy 30,9 mm x 500 mm
- Stem riser: Fully adjustable height
- Gear system: Optional Schlumpf Speed Drive gear system up to 1:1,65 ratio or Schlumpf Mountain Drive gear system, ratio 2,5:1
- Drive: Belt, Gates Carbon Drive
- Brakes: hydraulic disc brake
- Tires: 20’’ Schwalbe Marathon Original 40-406
- Meters of development: 4,46m (Standard), 4,46m - 7,36m (Speed Drive), 1,78m - 4,46m (Mountain Drive); gear ratio: 14,63ft (Standard), 14,63ft - 24,15ft (Speed Drive), 5,84ft - 14,63ft (Mountain Drive)
- Pedals: Full aluminium folding pedals
- Kickstand: sturdy with end foot
- Bell: light and elegant
- Weight: 13,9 kg (approx., without pedals, +/- 5%)
- Folded size: H: 57 cm x L: 79 cm x W: 29 cm, (H: 22 in x L: 31 in x W: 11 in)
- Length unfolded: 155 cm (61 in)
- Maximum permissible weight: 125 kg/276 lbs
TECHNICAL DATA ELECTRIC MOTOR
- Zehus Drivetrain - Motor power: 250 W/ max. 40 Nm
- Speed: 25 km/h with motor drive or up to 40 km/h manually with the Schlumpf speed drive (optional)
- Range: up to 75 km in hybrid mode
- Bluetooth 5.1 connection via smartphone and free Bitride Connect app or via wireless remote control (optional accessory)
- Integrated battery with Smart BMS, 173 Wh
- Highly efficient BLDC motor with energy recovery K.E.R.S (Kinetic Energy Recovery System). When cranking backwards, the motor switches to recuperation - the energy generated by this recharges the battery
- Motor Battery Sensors: All-in-one motor, no wiring on the frame.
- Charging time: included charger (100% charged in just 3 hours)
- Water protection IP certification protection class: IPX5
- Battery life: 1.000 charging cycles
- Total weight electric motor: 3.2kg
